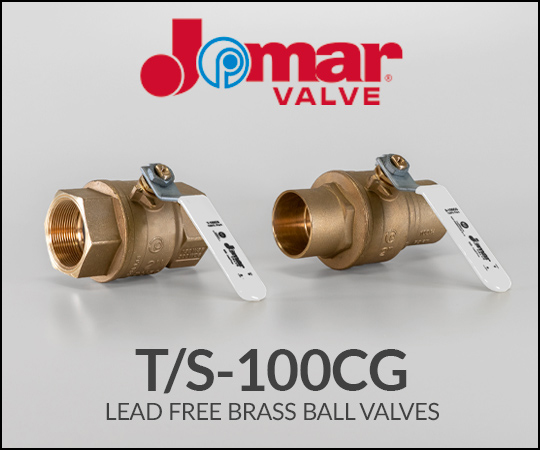

Jomar’s T/S-100CG Italian Lead Free Ball Valves are designed for a wide variety of applications. Each valve features a full port design with a 600 WOG rating. These valves are available in threaded, solder and press end connections, all holding multiple certifications.

Features include a heat-treated dezincification resistant alloy; heavy pattern body; triple stem seal; and a lifetime warranty.

Heat Treated Dezincification Resistant Brass

Jomar’s Lead Free Valves offer the best corrosion resistant alloy on the market. Better than bronze, their heat-treatment process changes the alloy to act as a combatant to dezincification, while providing an increased level of mechanical strength. Jomar’s 80 years of manufacturing expertise showcases an ideal, cost-effective engineered solution.

New Heavier Pattern Body

The T/S-100CG features a new enhanced heavy body pattern design to meet the strict demand of commercial plumbing applications.

Triple Stem Seal

The T/S-100CG offers a triple stem seal, comprised of 2 FKM O-Rings and second generation PTFE packing gland. As a testament to their quality, Jomar’s lifetime warranty for stem leakage has been a standard since the early 1980’s.

Stainless Steel Trim Options

The T/S-100CG is available in sizes ranging from ½” – 4” with stainless steel handle, nut, ball and stem options.

BIM Files and Accessories

Jomar’s website offers both BIM and CAD files available for download. The T/S-100CG can also be customized with various accessories including the insulated Thermal-Block™ Handle to eliminate thermal energy loss; Slo-Ball™ Handle to prevent water hammering; Memory Stop to control flow; Lift-n-Lock™ Handle for tamper-proof design; stem extensions and more.

Specifications

Jomar Valve is partnered with both MasterSpec and BSD SpecLink to provide designers with confidence in writing their specifications.
