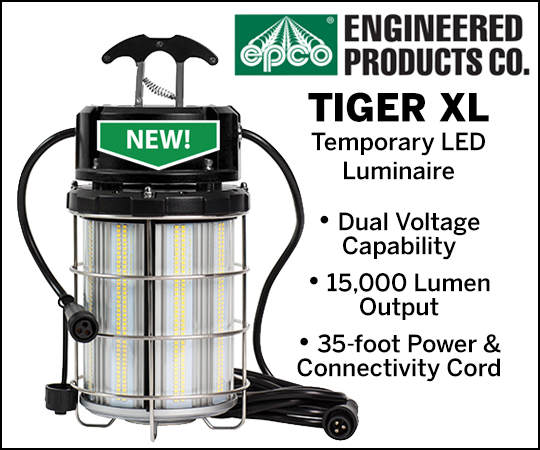

EPCO: TIGER XL™ Temporary LED Luminaire

Engineered Products Company’s (EPCO) TIGER XL Temporary LED Luminaire is a low cost, energy efficient lighting solution, highly functional for use in construction and retrofit lighting projects. This luminaire provides 15,000 lumens of brilliant white illumination over a 360 degree outward facing area and downward. This translates to a productive work environment during building construction or major renovation projects.

Dual-Voltage Flexibility

Attributes

■ ETL listed for dual voltage flexibility! Ability to operate on a 120 or 277-volt circuit; provides the contractor with the ultimate flexibility on the job site.
■ High lumen output of 15,000 Lumens @ 100-Watts is highly favorable compared to other competitive products in the market today.
■ 35-Foot power and connectivity cord distributes higher lumen output over a broad job site area to improve productivity.
■ Less labor required to hang and suspend up to four TIGER XL luminaires (maximum) over the job site.

Benefits

■ Distributes 15,000 Lumens @ 100-Watts
■ Lumen distribution: 360 degrees - outward and down.
■ Impact Resistant: If dropped, luminaire continues to operate with no degradation in lumen output.
■ Meets OSHA Standard 1915.82(b)(1)(2)(3); 10-Foot candles minimum.
■ Meets 2020 National Electrical Code, Article 410.62(C)(1) and (2).

Features

■ No assembly required! Ready to use out of the box.
■ Power cord power and connectivity configuration:

■ Primary Power: 1-Foot, pre-stripped pigtail is hard-wired directly into a 120 or 277-volt circuit.
■ Secondary: 35-foot power and connectivity cord powers up to three (3) additional TIGER XL Temporary LED Luminaires.
■ Eliminates receptacle-based connections; removes the possibility of energizing a 120-volt power tool when operating on a 277-Volt circuit.

■ “Snap-Lock” hang hook expedites job site installation, folds flat for storage or transportation to the next job site.
■ Required maintenance: None.

Specifications

■ Lumen Output: 15,000 @ 100 Watts
■ Operating Voltage: Wired directly into 120 or 277-volt circuit
■ Amperes: 1.0 @ 120V; 0.5 @ 277V
■ Wattage Consumption: 100-Watts
■  Power Cord Type: 16/3 SJTW Power Cord
■  Color Temperature: 5000K
■  Total Connectivity: Four (4) luminaires
■  Application: Dry or Damp Environments
■  Operating Temperature: -4°F (-20°C) to 104°F (40°C)
■  Certification: ETLus
■  Warranty: 5-years at L70

5401 Smetana Drive, Minnetonka MN 55343 P 800.336.1976 • F 800.336.2801 • www.engproducts.com • [email protected]
